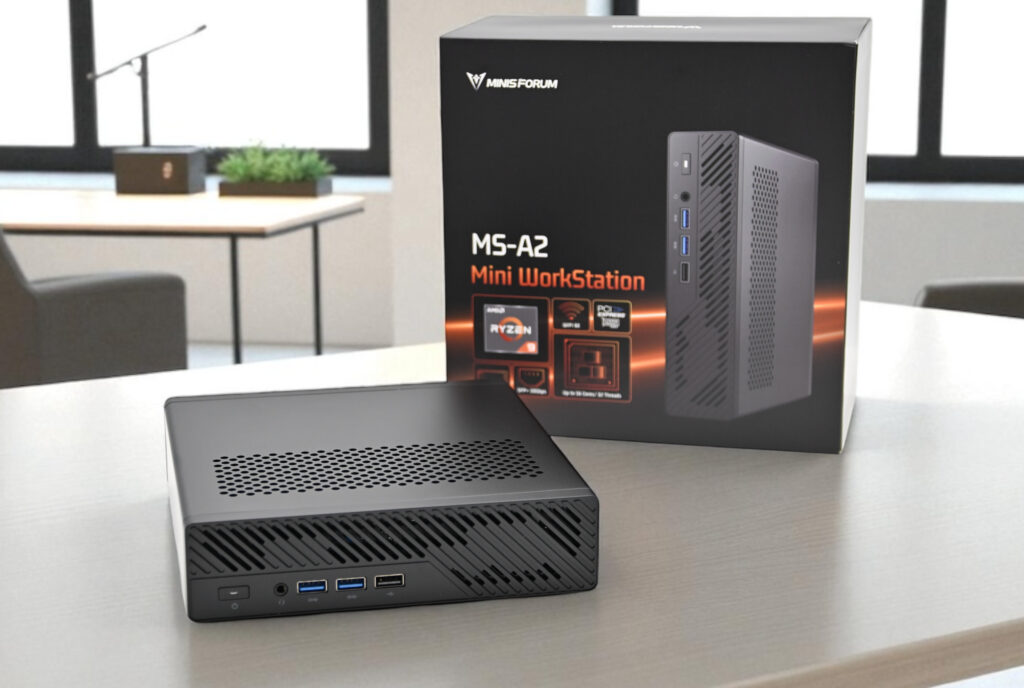

The launch of the Minisforum MS-A2 presents a compact mini PC designed to meet the demands of workstation users. Powered by the AMD Ryzen 9 9955HX, this system delivers strong overall performance, though it faces challenges in 3D graphics capabilities without the addition of a dedicated graphics card. With versatile connectivity options and a robust design, the MS-A2 caters to users seeking high computing power in a small footprint.
The MS-A2’s standout feature is its ability to accommodate a low-profile GPU, although Minisforum does not offer pre-configured models that include a graphics card. Users will need to upgrade to enhance the system’s performance for graphics-intensive tasks. Another consideration is the noise level; the cooling system struggles under heavy loads, causing the device to emit noticeable noise that may not be suitable for quieter environments.
Specifications and Performance Overview
The base model of the Minisforum MS-A2 is available for 1169 euros, while a version equipped with 64GB of RAM and a 1TB SSD is priced at 1239 euros. For those purchasing directly from the manufacturer, prices start at 939 euros for the barebone configuration. The system is designed to support demanding workloads such as content creation and professional multitasking, making it a compelling option for users requiring significant processing power.
In terms of design, the MS-A2 shares aesthetic similarities with previous models, evoking an industrial feel reminiscent of devices like Lenovo’s ThinkCentre series. Constructed from metal with a plastic front panel, the unit weighs 1.5 kg and features an extensive array of connectivity options, including seven USB ports and an HDMI port. This connectivity is essential for its intended use as a compact workstation.
Upgrade and Maintenance Capabilities
The maintenance process is relatively straightforward, as the case opens without the need for tools. However, users will need basic tools to install RAM or SSDs. The system supports only PCIe SSDs, but it can also accommodate a U.2 drive using the included adapter. The MS-A2 package comprises the mini PC, a 240-watt power supply, an HDMI cable, and an OCuLink PCIe card, although it remains unclear if the latter is included in retail versions.
Performance testing of the MS-A2 showed that while it excels in single-core and multi-core workloads, it struggles with sustained performance under heavy loads. Benchmarks indicate that the AMD Ryzen 9 9955HX cannot maintain peak performance for extended periods, with power consumption tapering off to around 75 watts during stress tests. This results in reduced overall performance, particularly due to the limitations of its integrated graphics.
While the MS-A2 is capable of supporting high-performance tasks, its integrated Radeon 610M iGPU is inadequate for demanding graphical applications. Users seeking enhanced capabilities can opt to install a low-profile dedicated GPU or connect an external graphics solution via OCuLink. This connection type provides greater bandwidth than USB4, improving 3D performance significantly. For instance, pairing the MS-A2 with a GeForce RTX 4090 allows it to operate closer to the expected performance level of a full workstation.
The cooling system operates at elevated speeds under load, resulting in a noise level that may be distracting in quiet settings. At idle, the device emits approximately 41 dB(A), escalating to 48.4 dB(A) under full load. Although it efficiently distributes heat, the MS-A2 is not particularly power-efficient, consuming more energy than typical mini PCs.
In summary, the Minisforum MS-A2 establishes itself as a strong contender in the compact workstation market, offering solid CPU performance, versatile connectivity, and a sturdy build quality. However, its limitations in integrated graphics and cooling under heavy loads mean it is best suited for users who are willing to invest in dedicated graphics solutions to fully realize its potential.
