Master the M.2 Slot: Optimize Your SSD for Peak Performance
Modern computing demands optimal performance, and the choice of the right M.2 slot for your SSD can significantly impact your system’s speed and efficiency. As NVMe SSDs have become the standard for high-speed storage solutions, understanding the nuances between different M.2 slots is essential for any PC user.

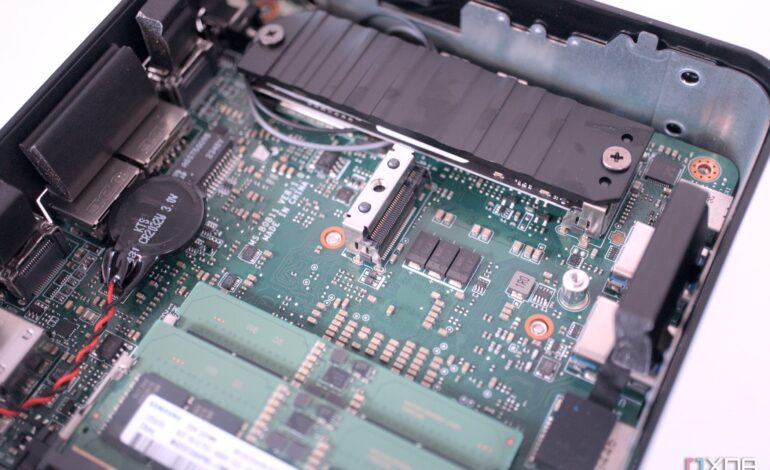

The M.2 interface connects super-fast storage to various devices, including high-end desktops, portable laptops, and compact mini PCs. Depending on the PCIe generation supported by your motherboard—determined by both the CPU and chipset—data transfer speeds can reach up to an impressive 15,000 MB/s. However, not all M.2 slots are created equal, and making the wrong choice could hinder your computer’s overall performance.
Understanding M.2 Slot Variations
At the core of most M.2 SSDs is the Peripheral Component Interconnect Express (PCIe), although some slots also support the slower SATA interface. The type of interface and the specific PCIe generation dictate the data transfer rates between the SSD and the motherboard, influencing load times for applications and games, as well as boot speeds for operating systems.
While PCIe generations have evolved rapidly and maintain backward compatibility, SATA connections do not share this flexibility. For instance, using a PCIe 5.0 SSD in a PCIe 3.0 M.2 slot will result in significantly reduced performance. Therefore, it is crucial to understand the capabilities of your motherboard’s SSD slots.
An important distinction lies in the physical design of the slots. NVMe SSDs and SATA SSDs utilize different keying layouts to prevent incorrect installations. SATA drives use a B-Key layout while NVMe drives utilize an M-Key layout. This differentiation helps ensure compatibility, as SATA SSDs are limited to around 550 MB/s, while PCIe enables NVMe SSDs to achieve speeds well into the thousands.
Performance Considerations and Best Practices
Installing an NVMe SSD in a SATA M.2 slot will not work, and vice versa. This incompatibility poses a risk of damaging either the drive or the motherboard. Furthermore, the PCIe generation can affect performance. For example, a PCIe 4.0 SSD installed in a PCIe 3.0 slot will be restricted to the slower speeds of the older generation, while a PCIe 3.0 SSD placed in a PCIe 4.0 slot will not leverage the faster interface.
Since its launch in 2019, PCIe 5.0 has emerged as the leading standard, offering remarkable speeds. Previous generations, PCIe 4.0 and PCIe 3.0, were introduced in 2017 and 2012, respectively, with PCIe 3.0 topping out at around 3,500 MB/s and PCIe 4.0 reaching up to 7,000 MB/s. Each successive generation effectively doubles the performance, underscoring the importance of selecting the appropriate M.2 slot.
Most modern motherboards feature multiple M.2 slots, each potentially configured with different PCIe generations. This variation can lead to performance discrepancies. For example, a motherboard may have slots designated for specific purposes, such as primary storage for operating systems and games, or secondary slots for long-term storage and even Wi-Fi cards.
To maximize performance, users should consult their motherboard’s manual to identify the primary M.2 slot, typically designed to support the most PCIe lanes. Moreover, high-speed NVMe drives may require cooling solutions to prevent throttling during intense tasks.
In summary, understanding the specific capabilities and configurations of your motherboard’s M.2 slots is crucial for achieving optimal performance. By prioritizing the right slot for your NVMe SSD and ensuring adequate cooling, you can effectively harness the power of modern storage technology. As newer generations of SSDs continue to emerge, this knowledge will prove increasingly valuable for ensuring your system’s efficiency and longevity.
